Stereophonic Tuner
Conception: 1975-77

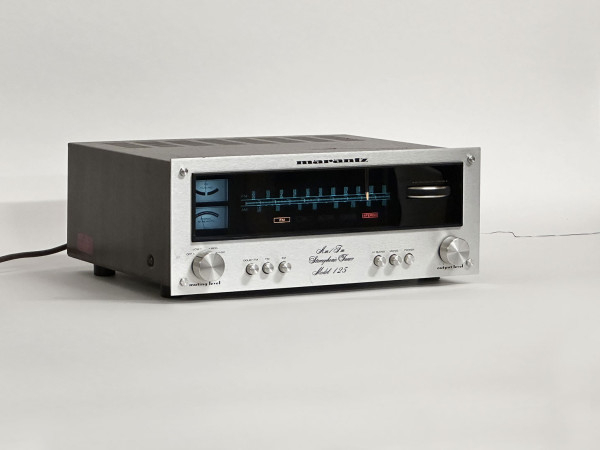

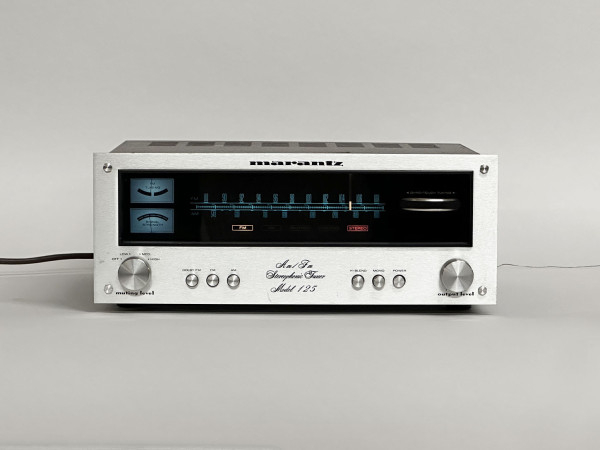

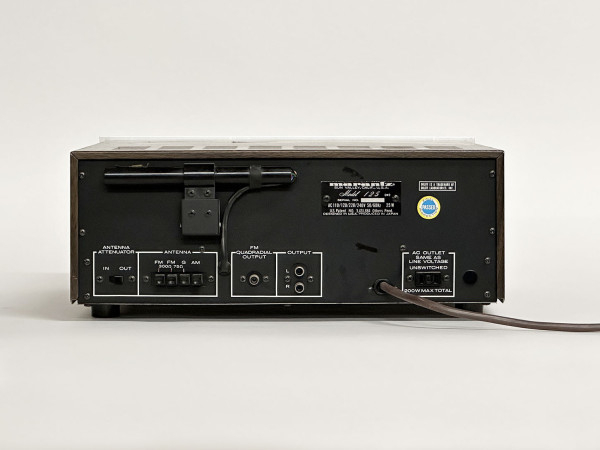

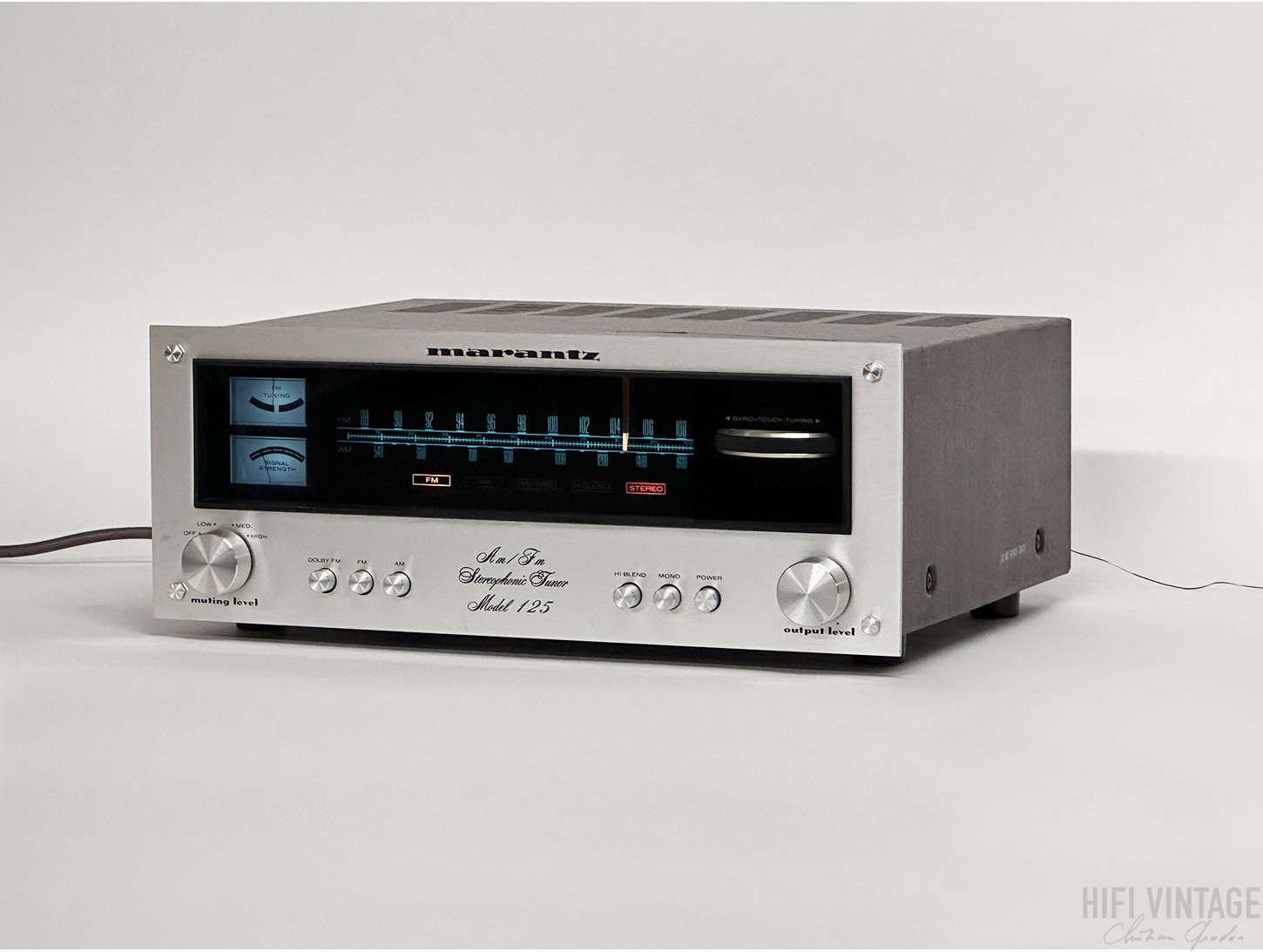

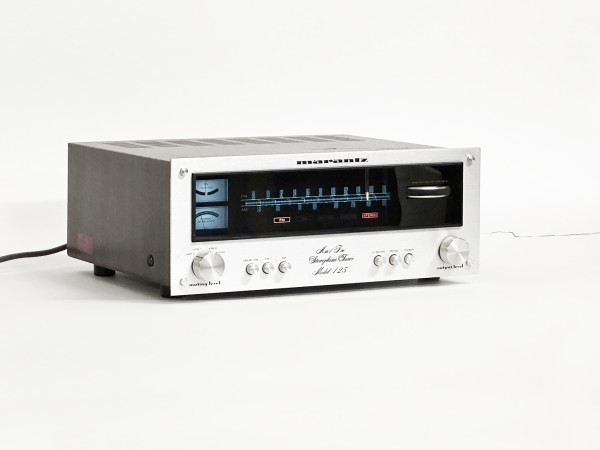

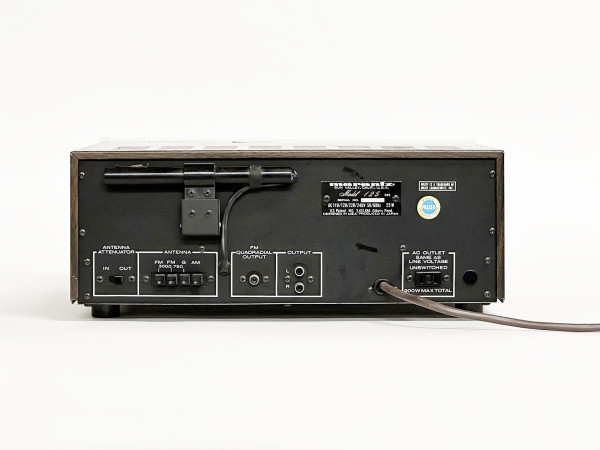

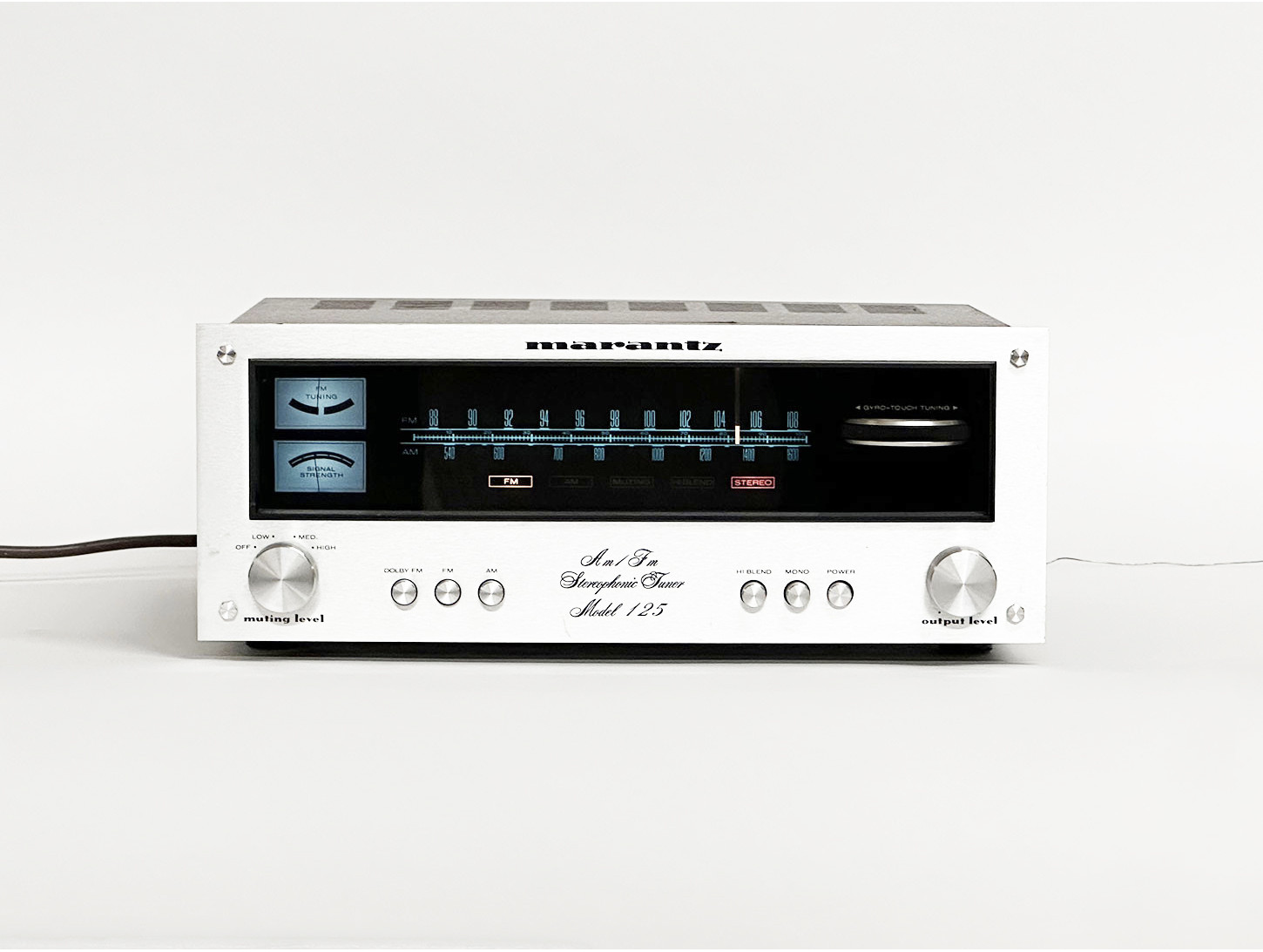

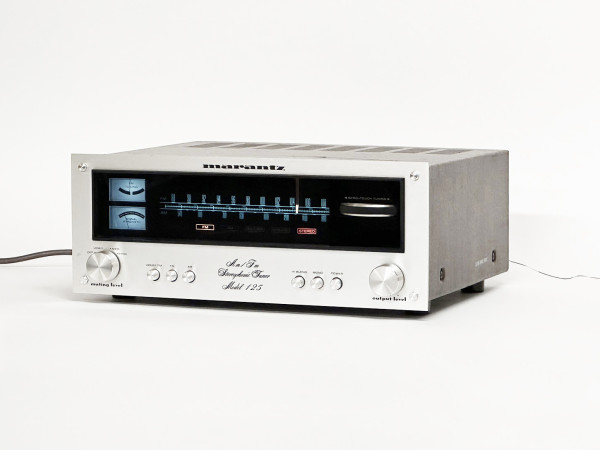

The Marantz model 125 is an all solid state AM/FM stereophonic tuner incorporating the advanced innovative design and unparalleled technology that have made Marantz famous in the audio component industry.
It features a highly selective AM tuner, a superb Dual Gate MOSFET FM front end, a phase locked loop stereo multiplex demodulator, variable muting and output level controls, linear phase IF LC filters, provisions for the connection of a four channel adapter, and a front panel selectable de-emphasis network for Dolby FM broadcasts.
MARANTZ Model 125
Model 125
Stereophonic Tuner
Conception: 1975-77
The Marantz model 125 is an all solid state AM/FM stereophonic tuner incorporating the advanced innovative design and unparalleled technology that have made Marantz famous in the audio component industry.
It features a highly selective AM tuner, a superb Dual Gate MOSFET FM front end, a phase locked loop stereo multiplex demodulator, variable muting and output level controls, linear phase IF LC filters, provisions for the connection of a four channel adapter, and a front panel selectable de-emphasis network for Dolby FM broadcasts.
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
MW Tuning Range: 515 to 1650 kHz
Sensitivity: 1.9uV (FM), 20uV (MW)
Signal to Noise Ratio: 60dB (FM), 50dB (MW)
Distortion: 0.3% (FM), 1% (MW)
Selectivity: 85dB (FM), 45dB (MW)
Frequency response: 30Hz to 15kHz (FM), 50Hz to 2.5kHz (MW)
Dimensions: 15-3/8 x 5-3/4 x 11-7/8 inches
Data sheet
- Power supply
- 220V - 240V
- Date of manufacturing
- 1978
- Design
- 1970s
- Availability
- SOLD
- Wavebands
- AM, FM
- Height
- 146 mm
- Width
- 416 mm
- Localisation
- BOURG-LA-REINE
- Poids
- 5 Kg
- Connectors
- RCA / Cinch
