INCA TECH "the Claymore" Hifi Vintage Réparations

INCA TECH "the Claymore"

€650.00

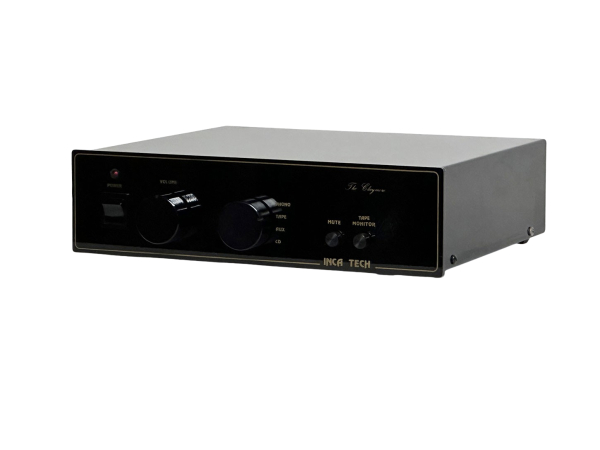

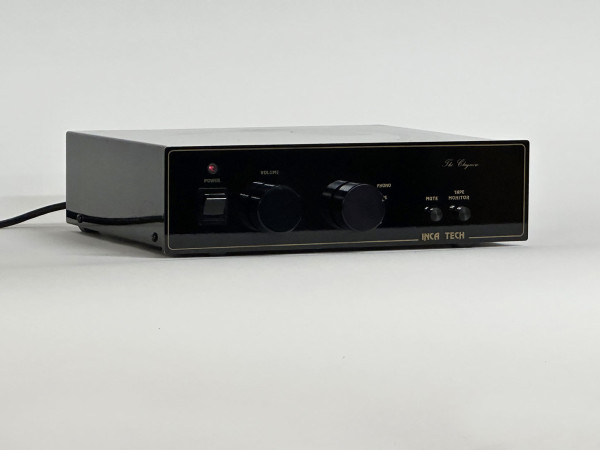

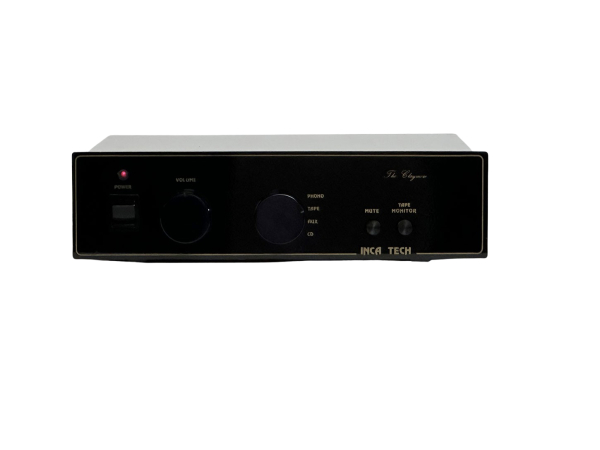

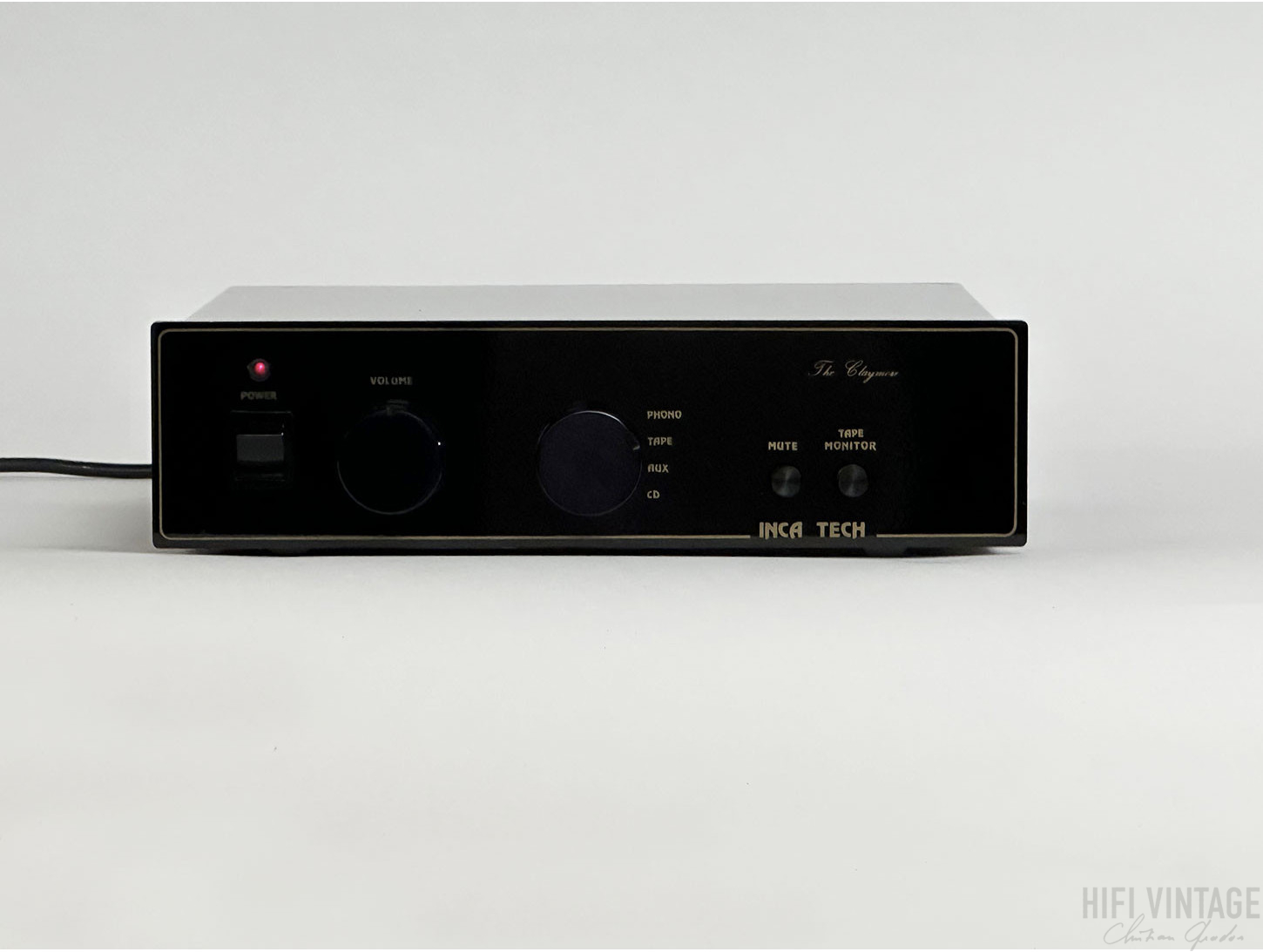

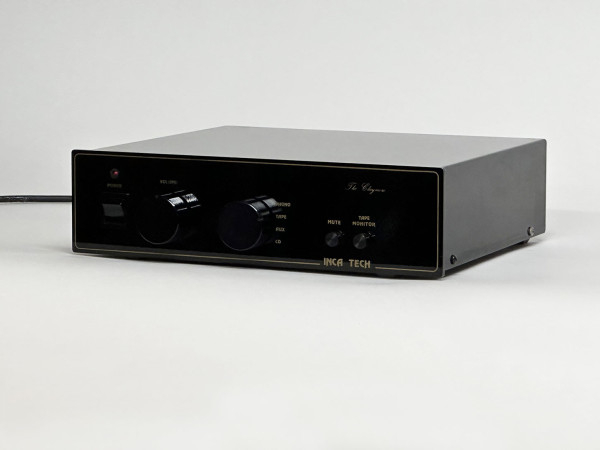

INCA TECH "the Claymore"

Stereo Integrated amplifier
Conception: 90

Power output (<1% THD, 8/4ohm) 45W / 61W
Dynamic power (<1% THD, 8/4/2/1ohm) 71W / 119W / 187W / 226W
Output imp. (20Hz–20kHz/100kHz) 0.02–0.039ohm / 0.275ohm
Freq. resp. (20Hz–20kHz/100kHz, 0dBW) –0.03dB to –0.09dB/–0.25dB
Input sensitivity (for 0dBW/50W) 27mV / 193mV
A-wtd S/N ratio (re. 0dBW/50W) 82.2dB / 99.2dB
Distortion (20Hz-20kHz, 10W/8ohm) 0.039–0.16%
Power consumption (Idle/rated output) 6W / 175W
Dimensions (WHD) / Weight 340x94x300mm / 5kg

Data sheet

Design
1970s
1990s
Availability
DISPONIBLE
Localisation
BOURG-LA-REINE
Photos
Auriane Grados
Power output / 8 Ohms
2 x 45 Watts
2 x 50 Watts

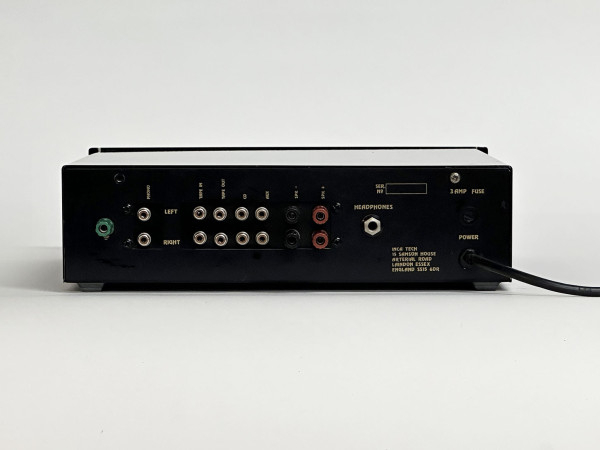

Connectors
RCA / Cinch
Technology
Transistors
