AKAI UC-U2/UC-M2/UC-K2 Hifi Vintage Réparations

AKAI Compact system UC-U2/UC-M2/UC-K2

UC-U2/UC-M2/UC-K2

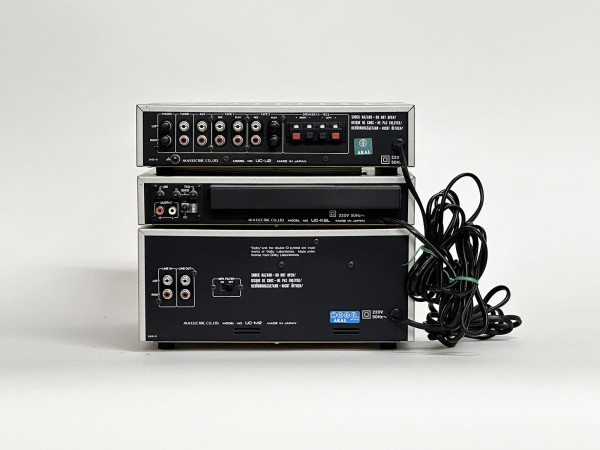

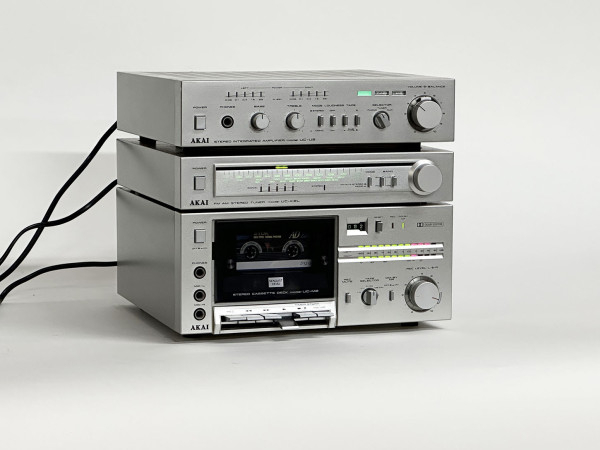

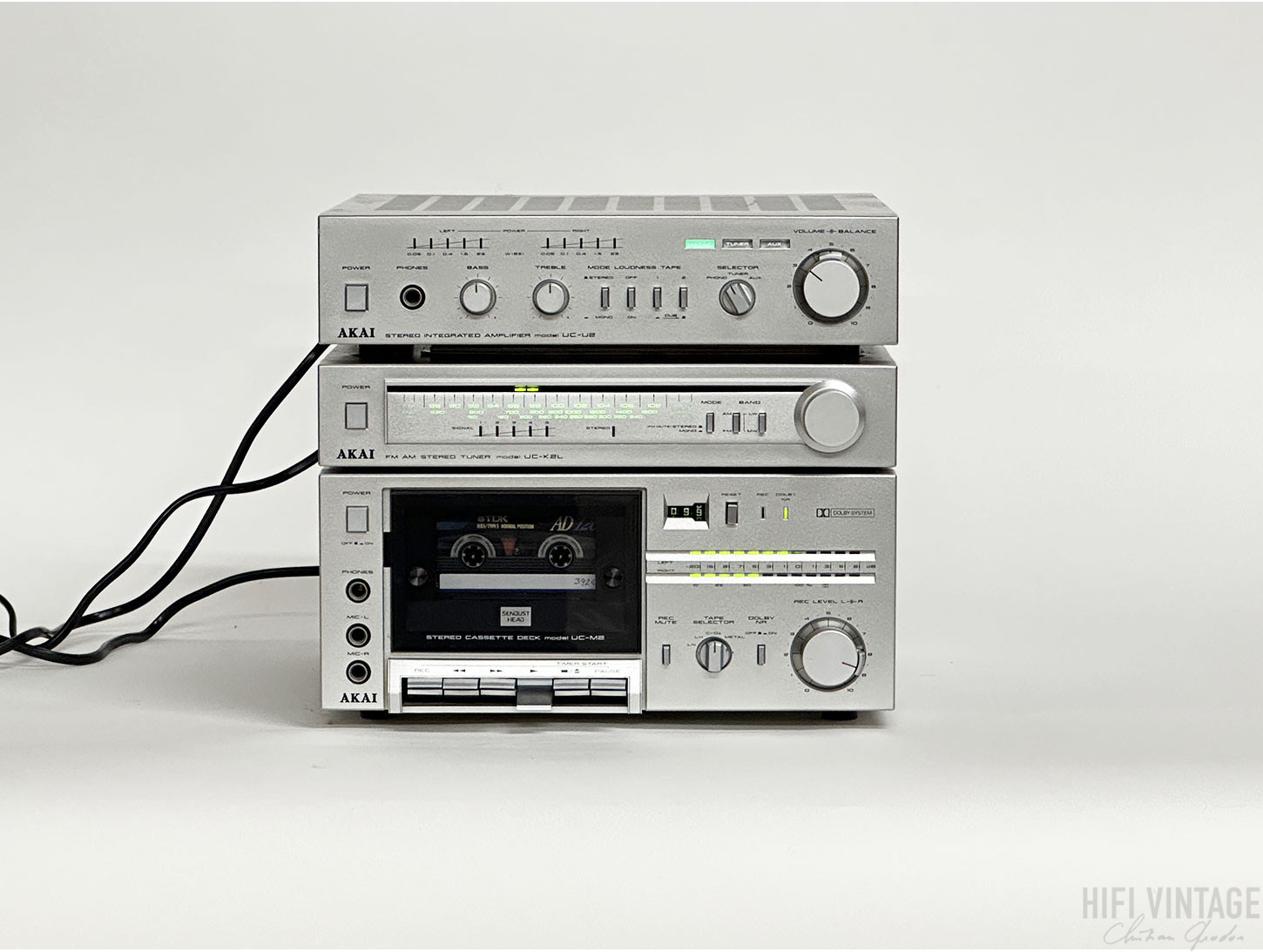

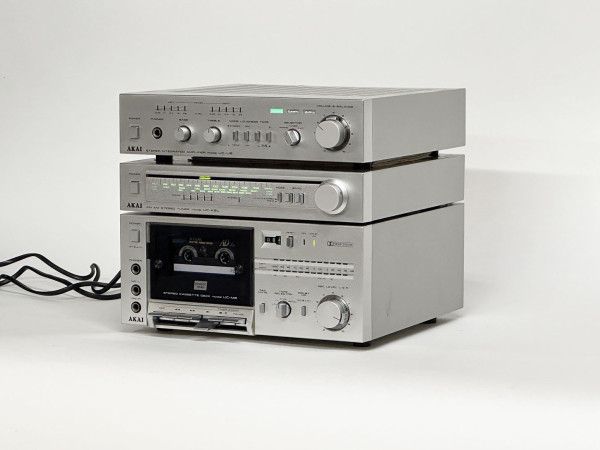

Mini-system composed of the UC-U2 integrated amplifier the U2-M2 cassette deck and the UC-K2L tuner.
Conception: 1981

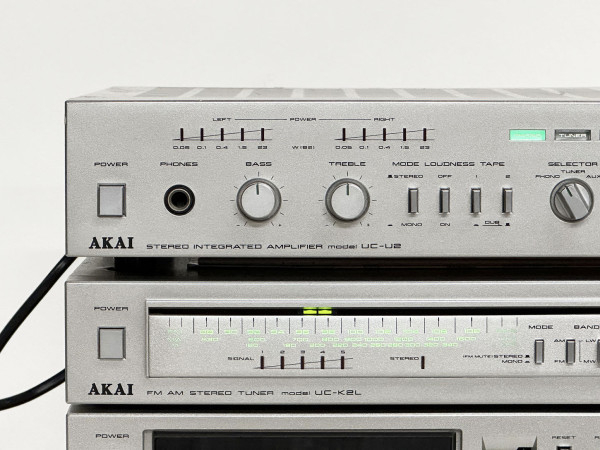

AKAI UC-U2 integrated amplifier

Power output: 23 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.06%
Damping factor: 40
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 75dB (MM), 90dB (line)
Channel separation: 50dB (MM), 55dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 20 x transistors, 19 x diodes, 4 x IC, 10 x LED
Dimensions: 280 x 69 x 280mm
Weight: 4.5kg

AKAI UC-M2 Stereo Cassette deck :

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronically speed controlled DC
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 30Hz to 18kHz  (Metal tape)
Signal to Noise Ratio: 66dB  (dolby B)
Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.5%
Input: 70mV (line), 0.25mV (mic)
Output: 0.41V (line)
Dimensions: 280 x 122 x 282mm



Weight: 5.5kg

Data sheet

Power supply
220V
Date of manufacturing
1980
Dimensions of unit (w x h x d)
25 x 31,5 x 28 cm
Availability
DISPONIBLE
SUR DEMANDE
Wavebands
FM, LW, MW
Localisation
BOURG-LA-REINE
Presentation
Painted steel
Headphones
Stereo jack 6.35mm
Power output / 8 Ohms
2 x 50 Watts
Connectors
RCA / Cinch
