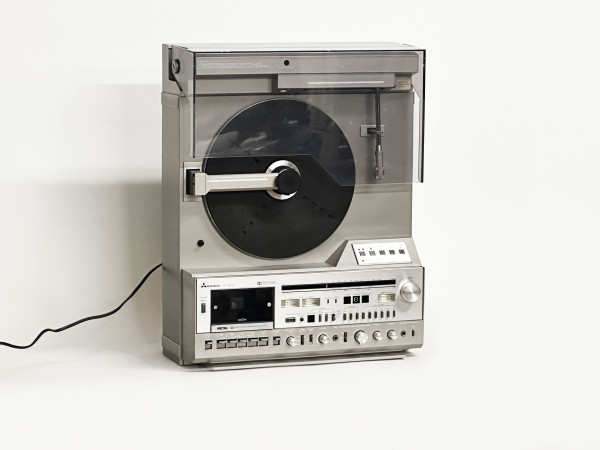

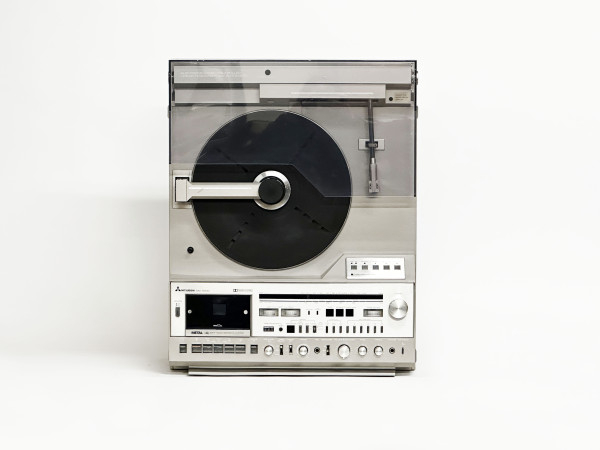

MITSUBISHI MC-8000

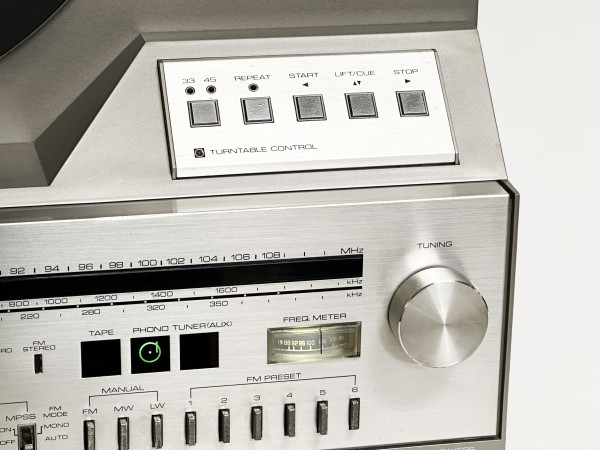

TUNER

Frequency response: 87.5 MHz - 108 MHz

Usable sensitivity: 0.9 µV (75 Ohms)

Distortion factor: 0.2%. Mirror Frequency Rejection: 45dB

Signal-to-Noise Ratio: 70dB

Stereo Crosstalk Attenuation: 35dB

Antenna Impedance: 300 Ohm Balanced and 75 Ohm Unbalanced

TURNTABLE: Electronically controlled, fully automatic operation

Drive: Belt

Motor: DC servo

Turntable: 30cm (cast aluminum)

Speeds: 33 1/3, 45 RPM

Synchronous Fluctuations: 0.06% (W.R.M.S)

Signal-to-Noise Ratio: 55dB (IEC-B) 65dB (DIN B)

Type: Linear tracking, straight tonearm, statically balanced

System: AT-71

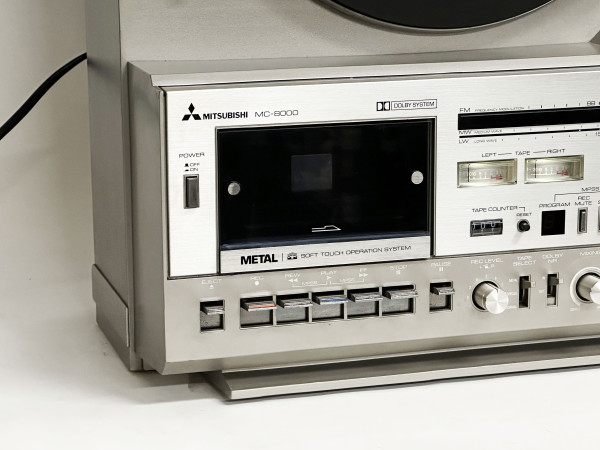

CASSETTE

Number of Tracks: 4 tracks, 2 channels

Tape Speed: 4.75 cm/second

Recording System: AC Pre-Magnetization (85 kHz)

Erase System: AC Erase (85 kHz)

Playback Equalization: Normal 3180 µs/120 µs - Special & Metal 3180 µs/70 µs

Frequency Response: Normal 30 Hz - 13000 Hz / Special & Metal 30 Hz - 16000 Hz

Signal-to-Noise Ratio: Dolby NR Off 45 dB (DIN) - Dolby NR On 52 dB (DIN)

Uniformity: 0.07% (W.R.M.S)

Channel Separation: 25 dB

Crosstalk Attenuation: 50 dB

Motor: DC Servo Motor

Dimensions (W/H/D): 460/587/245 mm

Weight: 18.5 kg
