Stereo receiver AM/FM
Year : 1974-76
Aluminium front panel, woodcase
Phono, auxiliary, tape, microphone
A & B speakers.

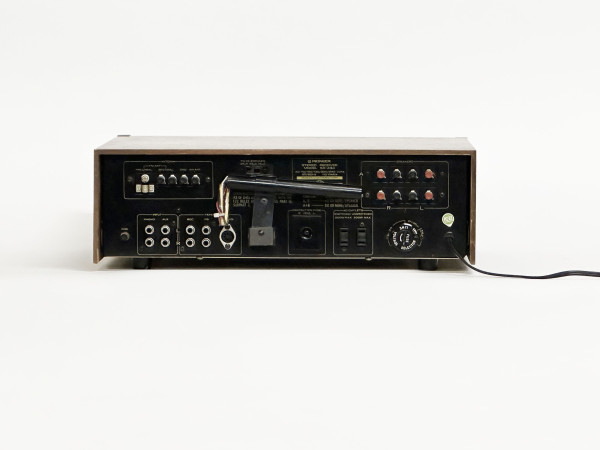

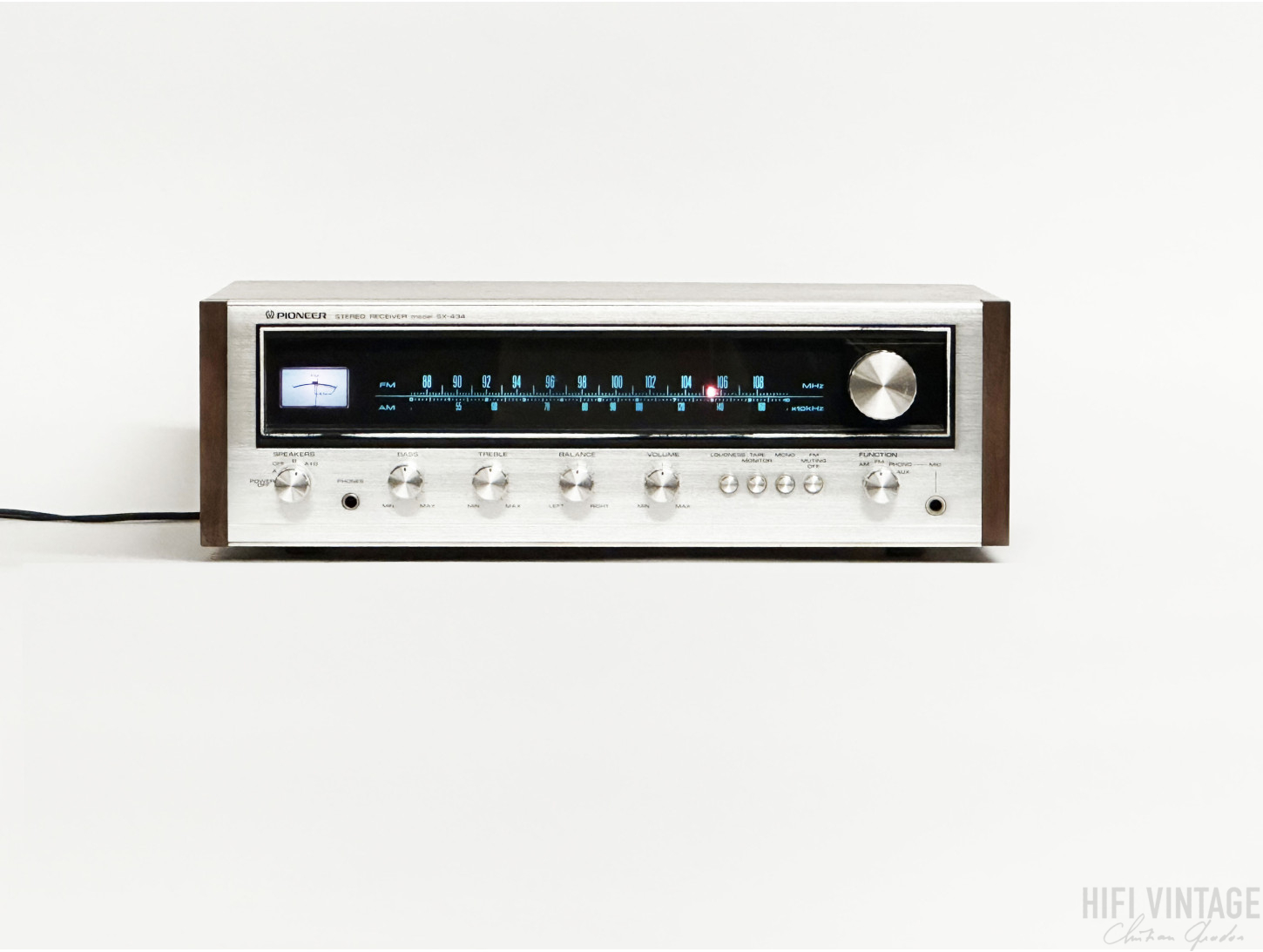

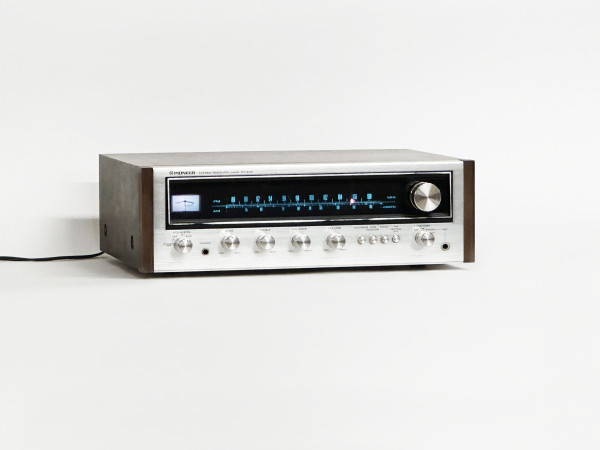

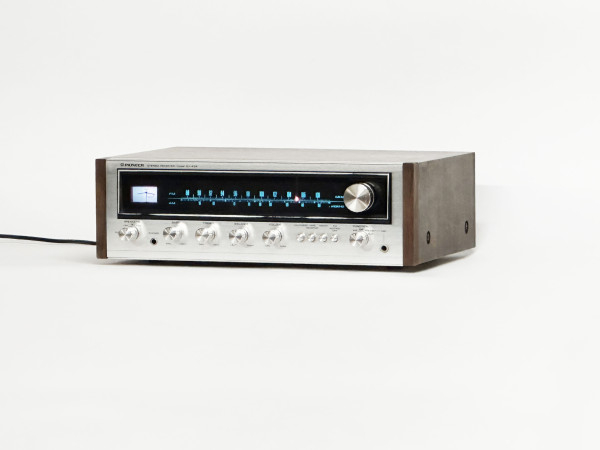

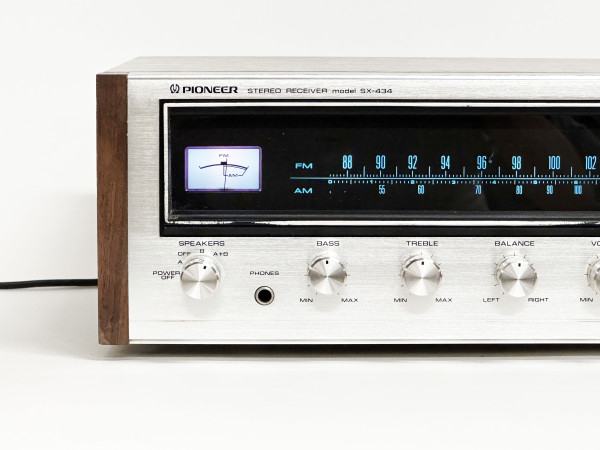

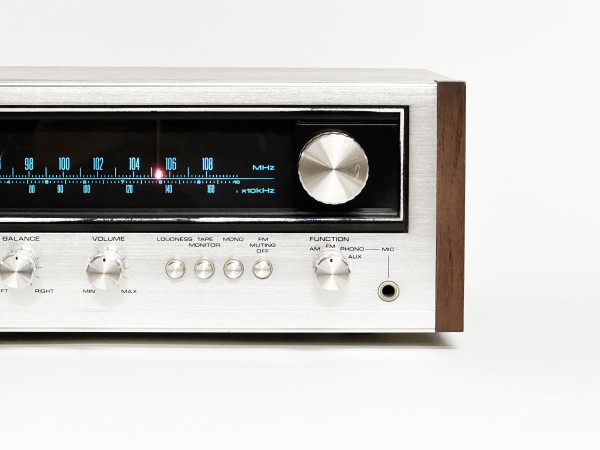

PIONEER SX-434
€550.00
SX-434
Stereo receiver AM/FM
Year : 1974-76
Aluminium front panel, woodcase
Phono, auxiliary, tape, microphone
A & B speakers.
Tuning range: FM, MW
Power output: 15 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 25kHz
Total harmonic distortion: 0.8%
Damping factor: 25
Input sensitivity: 10mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 3 x IC, 27 x transistors, 13 x diodes
Dimensions: 430 x 140 x 347mm
Weight: 8.1kg
Data sheet
- Power supply
- 110V, 120V, 220V, 240V
- Date of manufacturing
- 1974
- Availability
- DISPONIBLE
- Wavebands
- AM, FM
- Localisation
- BOURG-LA-REINE
- Headphones
- Stereo jack 6.35mm
- Power output / 8 Ohms
- 2 x 15 Watts
- Stereo / Mono
- Stereo
- Connectors
- DIN, RCA
- Technology
- Transistors
