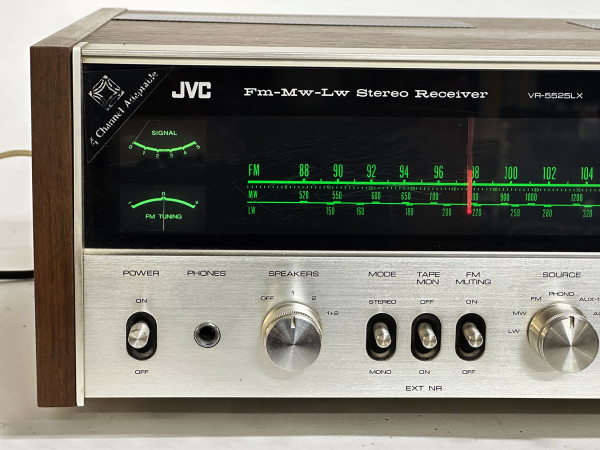

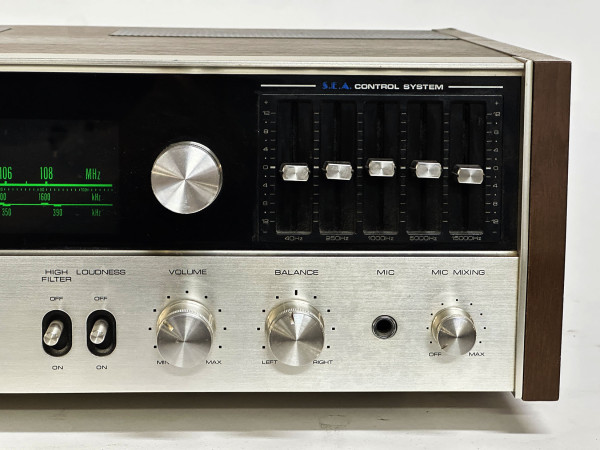

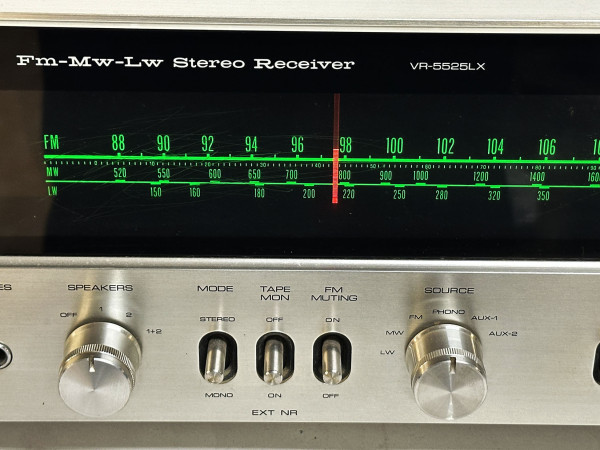

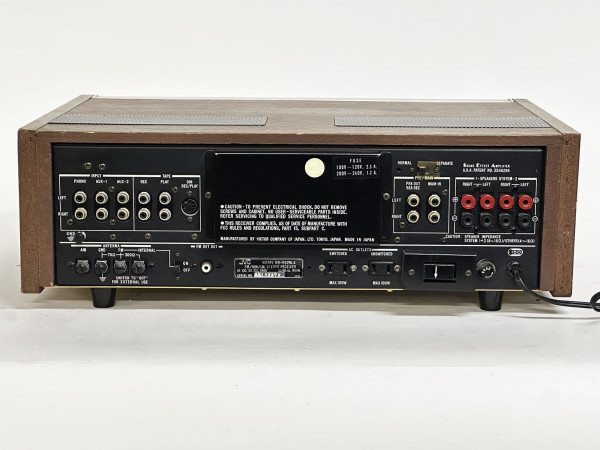

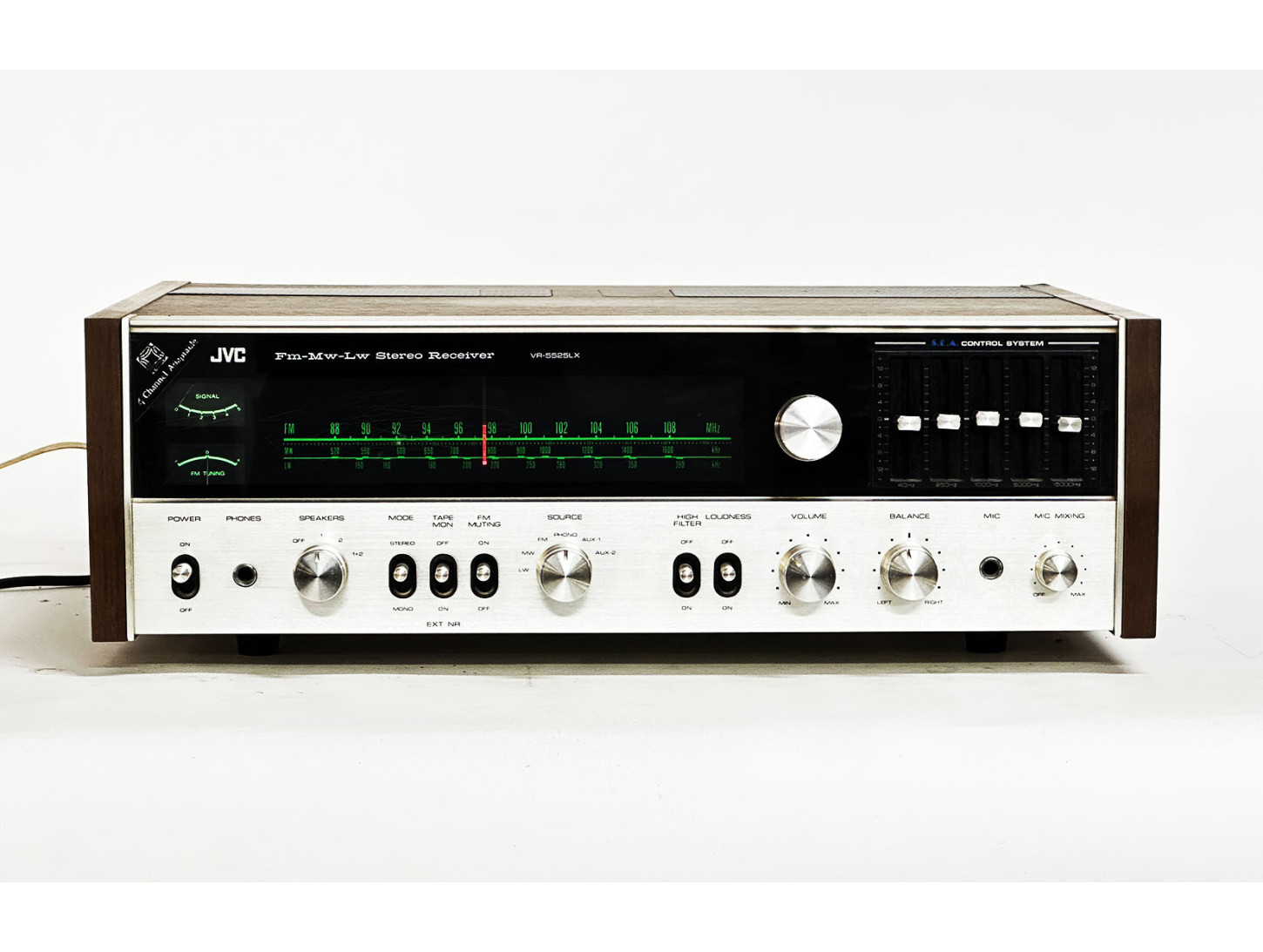

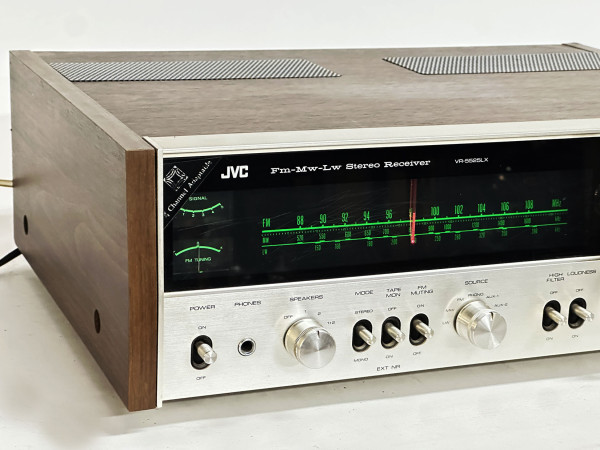

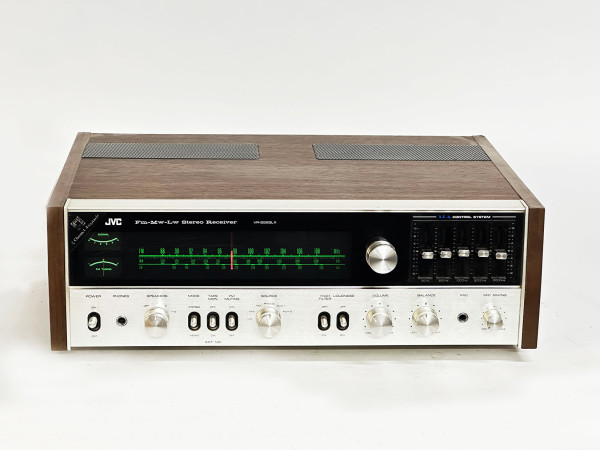

JVC VR-5525LX
VR-5525LX
FM/LW/MW receiver
1975
2 x 23 Watts l into 8 Ohms.
Specifications
Tuning range: FM, MW
Power output: 25 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.8%
Damping factor: 40
Input sensitivity: 3mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 70dB (mic), 65dB (MM), 70dB (DIN), 70dB (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 472 x 155 x 324mm
Weight: 10.5kg
Data sheet
- Power supply
- 110V, 120V, 220V, 240V
- Date of manufacturing
- 1976
- Availability
- DISPONIBLE
- Wavebands
- FM, LW, MW
- Localisation
- BOURG-LA-REINE
- Headphones
- Stereo jack 6.35mm
- Power output / 8 Ohms
- 2 x 25 Watts
- Connectors
- DIN, RCA
- Technology
- Transistors
