Three Head Auto Reverse Cassette Deck
Year : 1982-93

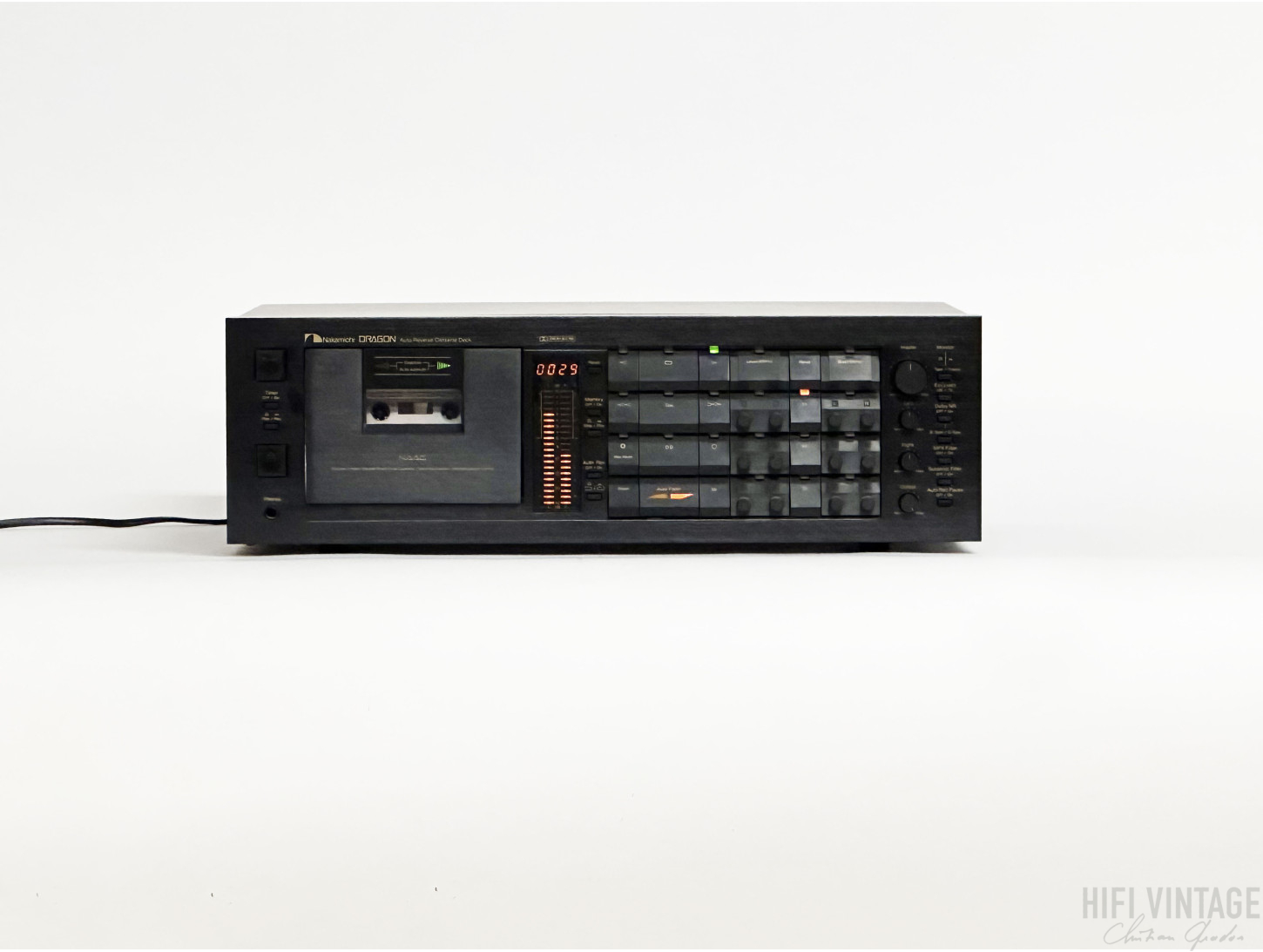

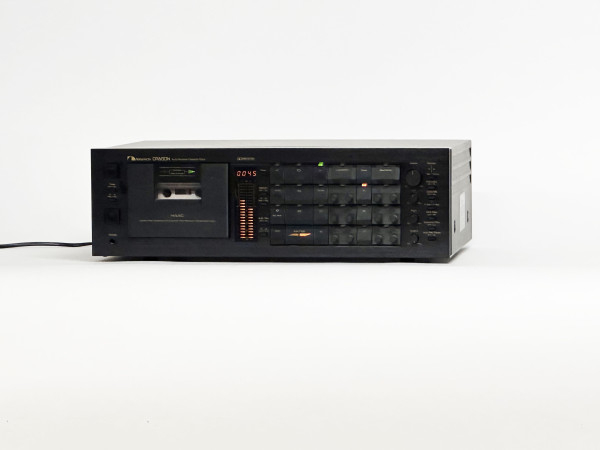

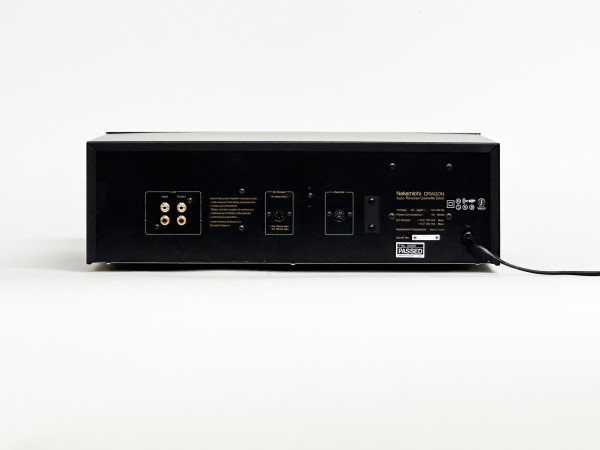

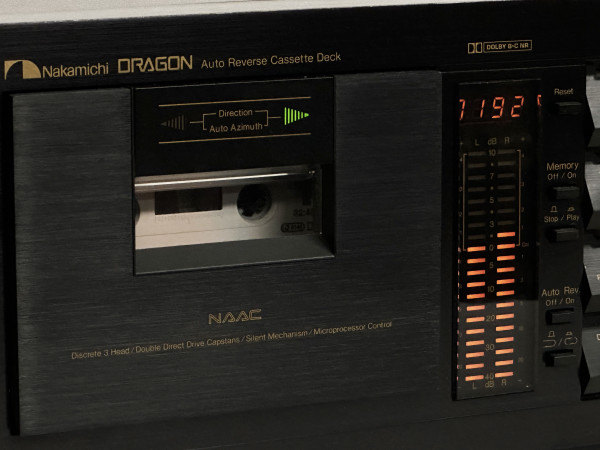

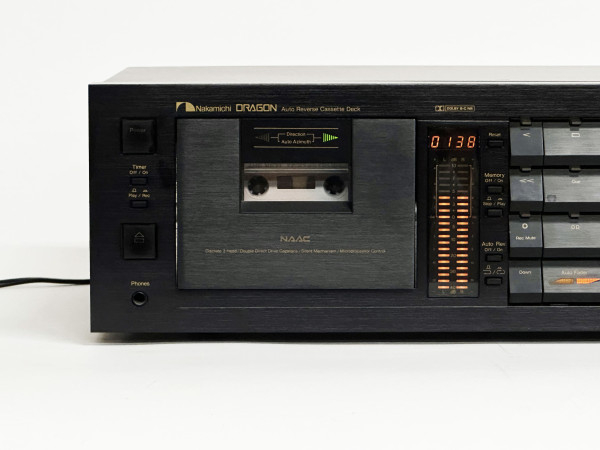

NAKAMICHI DRAGON
Dragon
Three Head Auto Reverse Cassette Deck
Year : 1982-93
Type: auto reverse, 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record, 1 x playback, 1 x erase
Motor: 2 x capstan, 1 x reel, 1 x auto azimuth, 1 x mechanism
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 22kHz (Metal tape)
Signal to Noise Ratio: 72dB (dolby C)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 0.8%
Input: 50mV (line)
Output: 1V (line)
Dimensions: 450 x 135 x 300mm
Weight: 9.5kg
Data sheet
- Autoreverse
- Yes
- Frequency response
- 20-20000Hz
- Capstan
- Double cabestan
- Date of manufacturing
- 1982-1993
- Availability
- SOLD
- Height
- 135 mm
- Width
- 450 mm
- Largeur de bande
- 1/8'
- Motor
- 3 moteurs
- Type
- 3-head
- Poids
- 10 kg
- Headphones
- Stereo jack 6.35mm
- Profondeur
- 300 mm
- Stereo / Mono
- Stereo
- Connectors
- RCA / Cinch
- Technology
- Transistors
- Drive method
- A courroie
- Vu-meters
- Led
- Speeds
- 4,75 cm/s 1,85'
