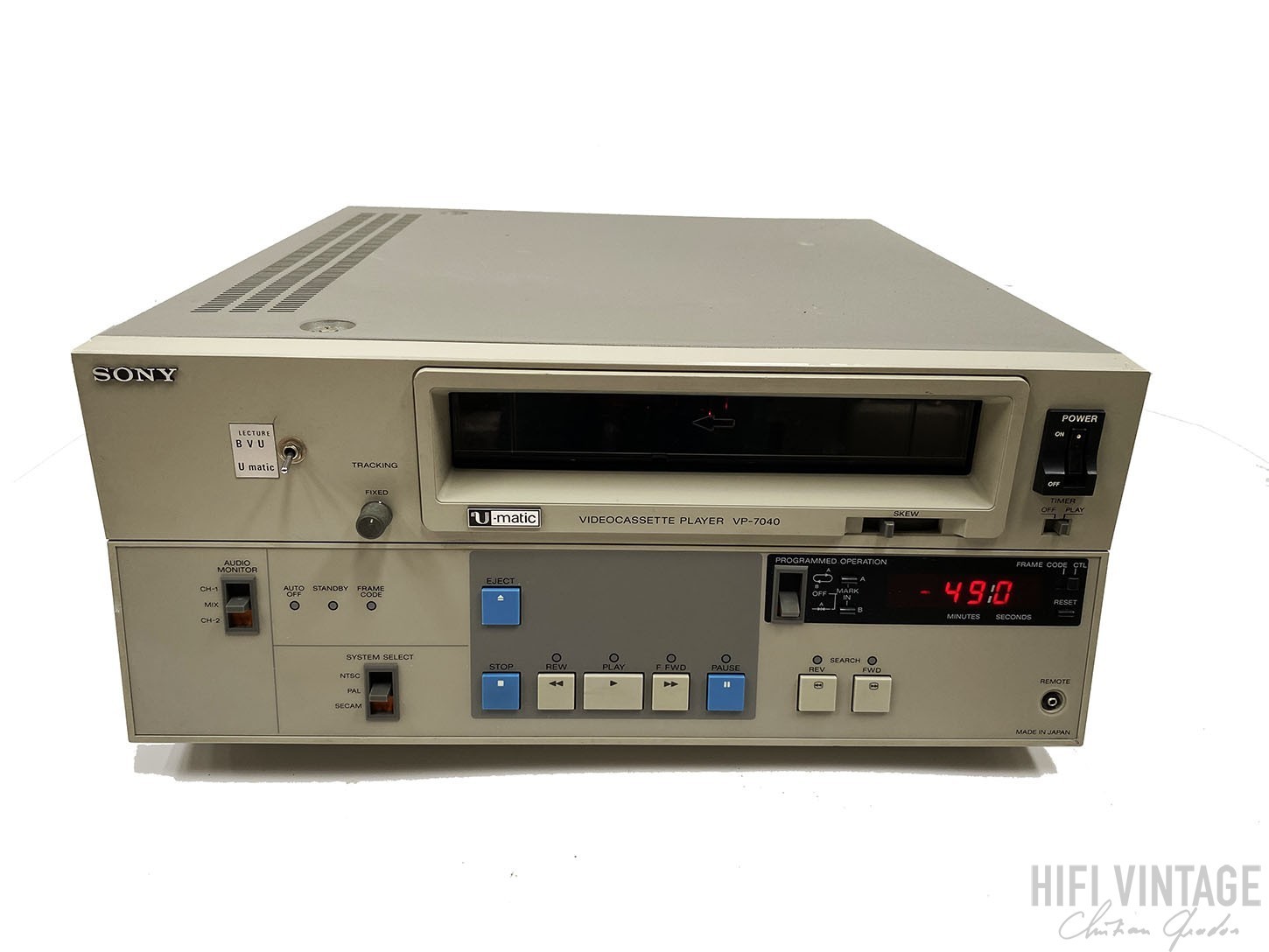

SONY VP-7040 UMATIC

Features:

• Multi Standard Playback (PAL, SECAM, NTSC 4.43)
• Frame Code
• RS-232C Interface Capability
• Real Time Counter
• Picture Search
• Long Pause
• A six digit absolute address code from 000000 to 299999 and is generated on each frame of the video source by using the FCG-700 Frame Code Generator.
• Provides an accurate indication of the tape running time.
• Recognizable color pictures at 5 times normal speed in both the forward and reverse directions can be obtained in the search mode. It is useful when trying to find desired pictures.
• When the tape is kept in pause mode for more than 8 minutes, the VTR is automatically set into the "Long Pause" mode. In this mode, the tape is loosened around the head to prevent tape damage and to protect the video head.
• Playback in PAL, SECAM and NTSC
• Using the BKU-701 Computer Inferface Board external computer control capability is possible through the RS-232C connector. Accurate auto search, auto repeat, and random access can be executed with this Frame code operation system.
• Output: LINE: -5dB(at 47k ohm load), unbalancedMonitor: -5dB(at 47k ohm load), unbalanced
• Videocassette: Sony KCA-BRS, KCA-XBR, KCS-BRS, KCS-XBR type or equivalent
• Video signal system: CCIR/EIA monochrome,PAL/SECAM and NTSC* color
• Operating temperature: 5C40C(41F104F)
• Tape speed: 9.53cm/sec.
• Fast forward time: Less than 4 min. (with Sony KCA-60 U-matic videocassettes)
• Rewind time: Less than 4 min. (with Sony KCA-60 U-matic videocassettes)
• Horizontal resolution: 250 lines(color/monochrome)
• S/N ratio: Better than 45dB(color)
• External sync input: 2.5V(1.0 - 5.0V)p-p, 75ohms, unbalanced, sync negative
• Distortion: Less than 2%
• Frequency response: 50Hz15kHz
• Wow and flutter: 0.23%DIN
• Power requirements: AC 220240V, 50/60HzAC 100120V, 50/60Hz(USA model)
• Operating voltage: AC 198264VAC 90132V(USA model)
• Power consumption: 58W(with the BKU-702,RM-580 and RFK-660)
• Playback time: 60 min.(with Sony KCA-60 U-matic videocassettes)
• Search speed: 5 times normal speed in both the forward and reverse directions(STILL,1/30, 1/10, 1/5, 1/2, 1, 2, 5, 8 times normal speed with the BKU-702 and RM-580)
• Output: 1.0Vp-p0.2V,75ohms, unbalanced, sync negative
• S/N ratio: Better than 45dB(color)
• S/N ratio: Better than 50dB(at 3% distortion)
• Output: LINE: -5dB(at 47k ohm load), unbalancedMonitor: -5dB(at 47k ohm load), unbalanced
